保护特性:aR
500-1250V / 160-1500A
尺寸:1 / 2 / 3 |
 |
|
■
产品采用99.999%纯银熔体，95瓷管，触刀镀银；
■ 符合IEC60269.4标准和GB13539.4标准；
■ 可用于保护二极管、晶闸管、可控硅整流器、GTO、IGBT、变频器、软起动器等半导体器件和设备。主要应用于直流电机传动、中频电源、电化学、不间断电源、整流桥内部的短路保护； |
|
|

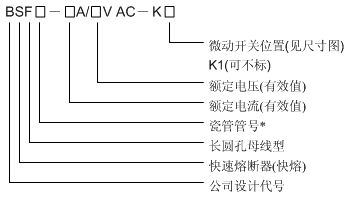

型号说明 |
|
|
 |
|
|
|
|
技术目录 |
|
|
|
|
|
|
|
|
规格参数 |
|
|
|
型
号 |
额定电压
(V) |
额定电流
(A) |
冷却 |
备注 |
|
BSF1 |
500、690 |
160、200、250、315、350、400、450、500 |
自冷 |
短触刀
-S |
|
长触刀
-L |
|
1000、1250 |
160、200、250、315、400、450 |
--- |
|
BSF2 |
500、690 |
300、350、400、500、630、700、800 |
自冷 |
短触刀
-S |
|
长触刀
-L |
|
1000、1250 |
250、315、350、400、450、500、550、630 |
--- |
|
BSF3 |
500、690 |
700、800、900、1000、1250、1400、1500 |
自冷 |
短触刀
-S |
|
长触刀
-L |
|
1000、1250 |
700、800、900、1000、1250、1400 |
--- |
|
|
|
|
型号示例：BSF3-1400A/690V AC-S |
|
 |
|

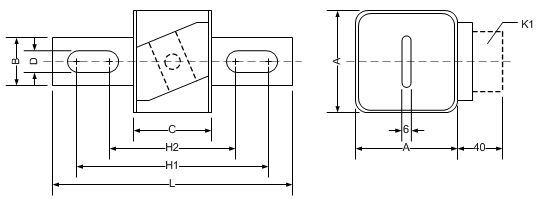

短触刀
-S |
|
型号 |
A |
B |
C |
D |
H1 |
H2 |
L |
|
BSF1 |
51 |
25 |
45 |
14 |
109 |
73 |
135 |
|
BSF2 |
60 |
30 |
45 |
14 |
109 |
73 |
135 |
|
BSF3 |
75 |
35 |
45 |
16 |
109 |
73 |
135 |
|
|
|
|
短触刀
-L |
|
型号 |
A |
B |
C |
D |
H1 |
H2 |
L |
|
BSF1 |
51 |
25 |
45 |
14 |
128 |
92 |
155 |
|
BSF2 |
60 |
30 |
45 |
14 |
128 |
92 |
155 |
|
BSF3 |
75 |
35 |
45 |
16 |
128 |
92 |
155 |
|
|
|
|
1000V
、
1250V
尺寸 |
|
型号 |
A |
B |
C |
D |
H1 |
H2 |
L |
|
BSF1 |
51 |
25 |
65 |
14 |
132 |
96 |
157 |
|
BSF2 |
60 |
30 |
65 |
14 |
132 |
96 |
157 |
|
BSF3 |
75 |
35 |
65 |
16 |
132 |
96 |
157 |
|
| |
|
|
|
熔断器互换表 |
|
|
|
BSF1
系列可替代以下进口型号
(690V AC) |
|
博悦公司型号 |
BUSSMANN |
FERRAZ |
|
短触刀
-S |
长触刀
-L |
短触刀
-S |
长触刀
-L |
|
BSF1-200A/690V |
170M4658 |
170M4758 |
A070URD31KI0200 |
A070URD31LI0200 |
|
BSF1-250A/690V |
170M4659 |
170M4759 |
A070URD31KI0250 |
A070URD31LI0250 |
|
BSF1-315A/690V |
170M4660 |
170M4760 |
A070URD31KI0315 |
A070URD31LI0315 |
|
BSF1-350A/690V |
170M4661 |
170M4761 |
A070URD31KI0350 |
A070URD31LI0350 |
|
BSF1-400A/690V |
170M4662 |
170M4762 |
A070URD31KI0400 |
A070URD31LI0400 |
|
BSF1-450A/690V |
170M4663 |
170M4763 |
A070URD31KI0450 |
A070URD31LI0450 |
|
BSF1-500A/690V |
170M4664 |
170M4764 |
A070URD31KI0500 |
A070URD31LI0500 |
|
BSF1-550A/690V |
170M4665 |
170M4765 |
A070URD31KI0550 |
A070URD31LI0550 |
|
BSF1-630A/690V |
170M4666 |
170M4766 |
A070URD31KI0630 |
A070URD31LI0630 |
|
BSF1-700A/690V |
170M4667 |
170M4767 |
A070URD31KI0700 |
A070URD31LI0700 |
|
BSF1-800A/690V |
170M4668 |
170M4768 |
A070URD31KI0800 |
A070URD31LI0800 |
|
BSF1-900A/550V |
170M4669 |
170M4769 |
|
|
|
|
BSF2
系列可替代以下进口型号
(690V AC) |
|
博悦公司型号 |
BUSSMANN |
FERRAZ |
|
短触刀
-S |
长触刀
-L |
短触刀
-S |
长触刀
-L |
|
BSF2-400A/690V |
170M5658 |
170M5758 |
A070URD32KI0400 |
A070URD32LI0400 |
|
BSF2-450A/690V |
170M5659 |
170M5759 |
A070URD32KI0450 |
A070URD32LI0450 |
|
BSF2-500A/690V |
170M5660 |
170M5760 |
A070URD32KI0500 |
A070URD32LI0500 |
|
BSF2-550A/690V |
170M5661 |
170M5761 |
A070URD32KI0550 |
A070URD32LI0550 |
|
BSF2-630A/690V |
170M5662 |
170M5762 |
A070URD32KI0630 |
A070URD32LI0630 |
|
BSF2-700A/690V |
170M5663 |
170M5763 |
A070URD32KI0700 |
A070URD32LI0700 |
|
BSF2-800A/690V |
170M5664 |
170M5764 |
A070URD32KI0800 |
A070URD32LI0800 |
|
BSF2-900A/690V |
170M5665 |
170M5765 |
A070URD32KI0900 |
A070URD32LI0900 |
|
BSF2-1000A/690V |
170M5666 |
170M5766 |
A070URD32KI1000 |
A070URD32LI1000 |
|
BSF2-1100A/650V |
170M5667 |
170M5767 |
A065URD32KI1100 |
A065URD32LI1100 |
|
BSF2-1250A/600V |
170M5668 |
170M5768 |
A060URD32KI1250 |
A060URD32LI1250 |
|
|
BSF3
系列可替代以下进口型号
(690V AC) |
|
博悦公司型号 |
BUSSMANN |
FERRAZ |
|
短触刀
-S |
长触刀
-L |
短触刀
-S |
长触刀
-L |
|
BSF3-500A/690V |
170M6658 |
170M6758 |
A070URD33KI0500 |
A070URD33LI0500 |
|
BSF3-550A/690V |
170M6659 |
170M6759 |
A070URD33KI0550 |
A070URD33LI0550 |
|
BSF3-630A/690V |
170M6660 |
170M6760 |
A070URD33KI0630 |
A070URD33LI0630 |
|
BSF3-700A/690V |
170M6661 |
170M6761 |
A070URD33KI0700 |
A070URD33LI0700 |
|
BSF3-800A/690V |
170M6662 |
170M6762 |
A070URD33KI0800 |
A070URD33LI0800 |
|
BSF3-900A/690V |
170M6663 |
170M6763 |
A070URD33KI0900 |
A070URD33LI0900 |
|
BSF3-1000A/690V |
170M6664 |
170M6764 |
A070URD33KI1000 |
A070URD33LI1000 |
|
BSF3-1100A/650V |
170M6665 |
170M6765 |
A070URD33KI1100 |
A070URD33LI1100 |
|
BSF3-1250A/600V |
170M6666 |
170M6766 |
A070URD33KI1250 |
A070URD33LI1250 |
|
BSF3-1400A/690V |
170M6667 |
170M6767 |
A070URD33KI1400 |
A070URD33LI1400 |
|
BSF3-1500A/690V |
170M6668 |
170M6768 |
A070URD33KI1500 |
A070URD33LI1500 |
|
BSF3-1600A/690V |
170M6669 |
170M6769 |
A065URD33KI1600 |
A065URD33LI1600 |
|
|
BSF1
系列可替代以下进口型号
(1250V AC) |
|
博悦公司型号 |
BUSSMANN |
FERRAZ |
|
BSF1-160A/1250V |
170M4738 |
170M4688 |
A130URD71LLI0160 |
E300752 |
|
BSF1-200A/1250V |
170M4739 |
170M4689 |
A130URD71LLI0200 |
F300661 |
|
BSF1-250A/1250V |
170M4740 |
170M4690 |
A130URD71LLI0250 |
G300662 |
|
BSF1-315A/1250V |
170M4741 |
170M4691 |
A130URD71LLI0315 |
H300663 |
|
BSF1-350A/1250V |
170M4742 |
170M4692 |
A130URD71LLI0350 |
J300664 |
|
BSF1-400A/1250V |
170M4743 |
170M4693 |
A130URD71LLI0400 |
K300665 |
|
BSF1-450A/1250V |
170M4744 |
170M4694 |
A130URD71LLI0450 |
L300666 |
|
BSF1-500A/1100V |
170M4745 |
170M4695 |
A120URD71LLI0500 |
M300667 |
|
BSF1-550A/1100V |
170M4746 |
170M4696 |
A120URD71LLI0550 |
N300668 |
|
BSF1-630A/1000V |
170M4747 |
170M4697 |
A110URD71LLI0630 |
P300669 |
|
|
BSF2
系列可替代以下进口型号
(1250V AC) |
|
博悦公司型号 |
BUSSMANN |
FERRAZ |
|
BSF2-250A/1250V |
170M5738 |
170M5688 |
|
|
|
BSF2-280A/1250V |
170M5739 |
170M5689 |
A130URD72LI0280 |
Q300670 |
|
BSF2-315A/1250V |
170M5740 |
170M5690 |
A130URD72LI0315 |
R300671 |
|
BSF2-350A/1250V |
170M5741 |
170M5691 |
A130URD72LI0350 |
S300672 |
|
BSF2-400A/1250V |
170M5742 |
170M5692 |
A130URD72LI0400 |
T300673 |
|
BSF2-450A/1250V |
170M5743 |
170M5693 |
A130URD72LI0450 |
V300674 |
|
BSF2-500A/1250V |
170M5744 |
170M5694 |
A130URD72LI0500 |
W300675 |
|
BSF2-550A/1250V |
170M5745 |
170M5695 |
A130URD72LI0550 |
X300676 |
|
BSF2-630A/1250V |
170M5746 |
170M5696 |
A120URD72LI0630 |
Y300677 |
|
BSF2-700A/1250V |
170M5747 |
170M5697 |
A110URD72LI0700 |
Z300678 |
|
BSF2-800A/1250V |
170M5748 |
170M5698 |
A110URD72LI0800 |
A300679 |
|
BSF2-900A/1250V |
170M5749 |
170M5699 |
|
|
|
BSF2-1000A/1250V |
170M5750 |
170M5700 |
|
|
|
|
BSF3
系列可替代以下进口型号
(1250V AC) |
|
博悦公司型号 |
BUSSMANN |
FERRAZ |
|
BSF3-315A/1250V |
170M6738 |
170M6688 |
A130URD73LI0315 |
B300680 |
|
BSF3-350A/1250V |
170M6739 |
170M6689 |
A130URD73LI0350 |
C300681 |
|
BSF3-400A/1250V |
170M6740 |
170M6690 |
A130URD73LI0400 |
D300682 |
|
BSF3-450A/1250V |
170M6741 |
170M6691 |
A130URD73LI0450 |
E300683 |
|
BSF3-500A/1250V |
170M6742 |
170M6692 |
A130URD73LI0500 |
F300684 |
|
BSF3-550A/1250V |
170M6743 |
170M6693 |
A130URD73LI0550 |
G300685 |
|
BSF3-630A/1250V |
170M6744 |
170M6694 |
A130URD73LI0630 |
H300686 |
|
BSF3-700A/1250V |
170M6745 |
170M6695 |
A130URD73LI0700 |
J300687 |
|
BSF3-800A/1250V |
170M6746 |
170M6696 |
A120URD73LI0800 |
K300688 |
|
BSF3-900A/1250V |
170M6747 |
170M6697 |
A110URD73LI0900 |
L300689 |
|
BSF3-1000A/1100V |
170M6748 |
170M6698 |
A100URD73LI1000 |
M300690 |
|
BSF3-1100A/1100V |
170M6749 |
170M6699 |
A100URD73LI1100 |
N300691 |
|
BSF3-1250A/1000V |
170M6750 |
170M6700 |
A100URD73LI1250 |
J300693 |
|
BSF3-1400A/1000V |
170M6751 |
170M6701 |
A90URD73LI1400 |
K300694 |
|
|
