保护特性:aM
400-690V / 0.5-125A
尺寸:Φ10x38 / Φ14x51 / Φ22x58 |
 |
|
■
额定电压400-690V AC(400V,500V,690V AC)；
■ 用于交流50/60Hz，额定电压400-690V，额定电流至125A的电动机后备短路保护的线路中；
■ 符合IEC60269.1标准和GB13539.1标准；
■ 所有圆柱型熔断器采用陶瓷管，双层帽，外帽镀银。 |
|
|
技术参数 |
|
|
|
型号 |
额定电流
(A) |
额定电压
(V) |
分断能力
(kA) |
订货型号 |
|
BM10 |
0.5 |
≤
500 |
120 |
BM10-0.5A/690V AC |
|
1 |
BM10-1A/690V AC |
|
2 |
BM10-2A/690V AC |
|
4 |
BM10-4A/690V AC |
|
6 |
BM10-6A/690V AC |
|
8 |
BM10-8A/690V AC |
|
10 |
BM10-10A/690V AC |
|
12 |
BM10-12A/690V AC |
|
16 |
BM10-16A/690V AC |
|
20 |
BM10-20A/690V AC |
|
25 |
400 |
BM10-25A/400V AC |
|
32 |
BM10-32A/400V AC |
|
BM14 |
2 |
≤690 |
80 |
BM14-2A/690V AC |
|
4 |
BM14-4A/690V AC |
|
6 |
BM14-6A/690V AC |
|
8 |
BM14-8A/690V AC |
|
10 |
BM14-10A/690V AC |
|
12 |
BM14-12A/690V AC |
|
16 |
BM14-16A/690V AC |
|
20 |
BM14-20A/690V AC |
|
25 |
BM14-25A/690V AC |
|
32 |
500 |
120 |
BM14-32A/500V AC |
|
40 |
BM14-40A/500V AC |
|
50 |
400 |
BM14-50A/400V AC |
|
BM22 |
2 |
≤690 |
80 |
BM22-2A/690V AC |
|
4 |
BM22-4A/690V AC |
|
6 |
BM22-6A/690V AC |
|
8 |
BM22-8A/690V AC |
|
10 |
BM22-10A/690V AC |
|
12 |
BM22-12A/690V AC |
|
16 |
BM22-16A/690V AC |
|
20 |
BM22-20A/690V AC |
|
25 |
BM22-25A/690V AC |
|
32 |
BM22-32A/690V AC |
|
40 |
BM22-40A/690V AC |
|
50 |
BM22-50A/690V AC |
|
63 |
BM22-63A/690V AC |
|
80 |
BM22-80A/690V AC |
|
100 |
500 |
120 |
BM22-100A/500V AC |
|
125 |
400 |
BM22-125A/400V AC |
|
|
|
外形尺寸 |
|
 |
|
型号 |
A |
B |
|
BM10 |
10 |
38 |
|
BM14 |
14 |
51 |
|
BM22 |
22 |
58 |
|
|
|
特性曲线 |
|
|
|
 |
|

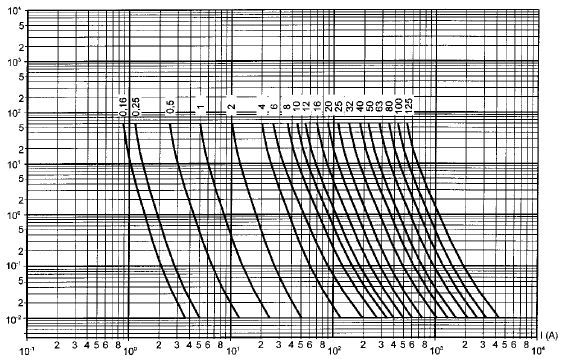

时间—电流曲线图 |
|
 |
|

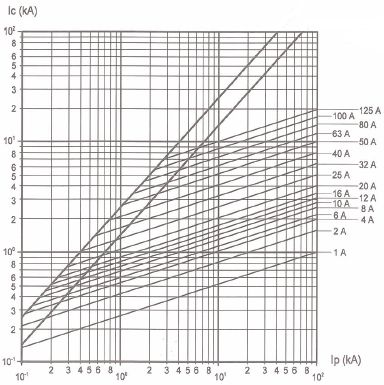

限流曲线图 |
|
